Test out everything on the proton board:
It's always a good practice to test out the wiring before solder components together.

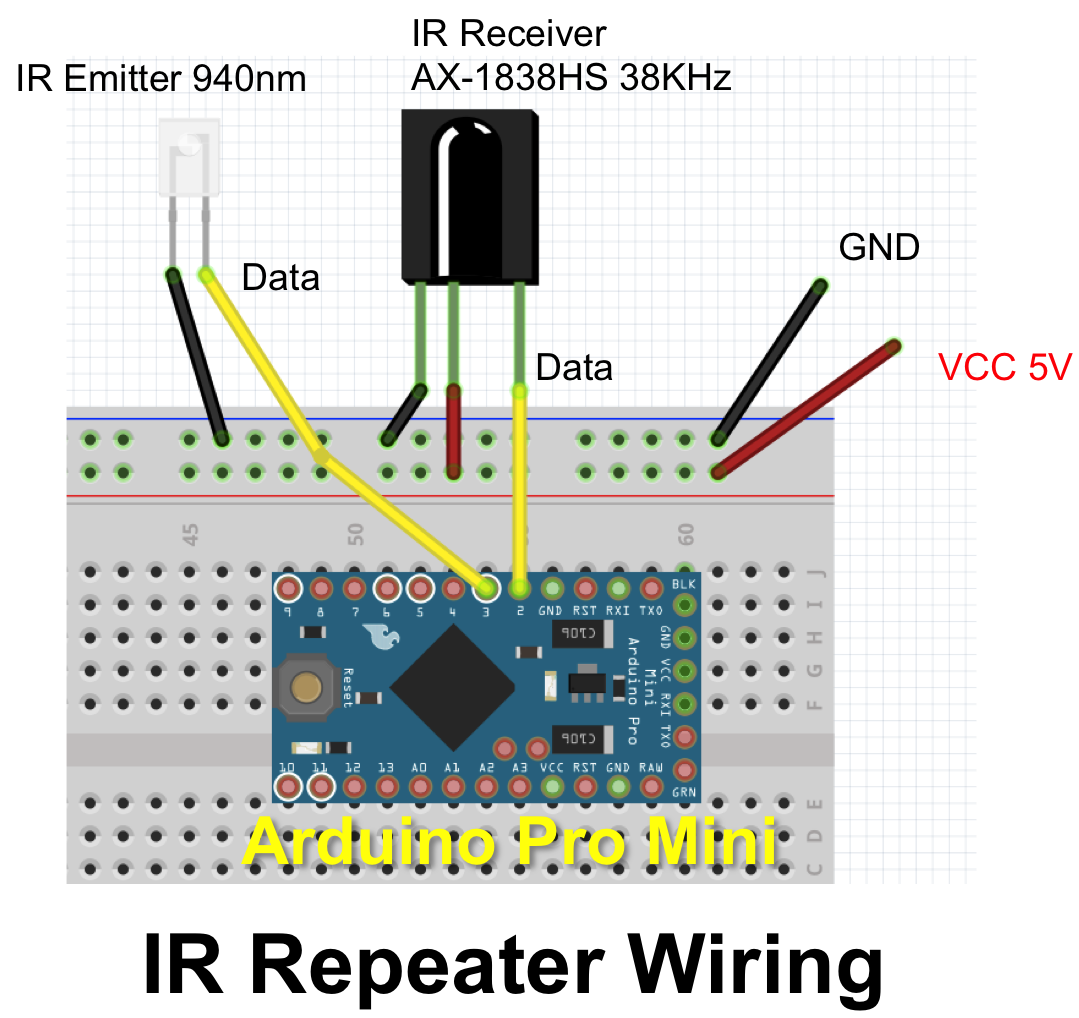

Connect IR receiver LED to Arduino Pro Mini
Connect IR emitter LED through 100 Ohm resister
The program below was created by Lauszus that I found on Gighub. The original program was written to receive IR code and decode IR then save the IR code in the memory until a button is pressed to emit IR code. To meet my requirement, I made few modifications to make it receive IR, decode IR, and then emit the IR immediately. Here is my code:
[Programming code]
/*
* IRrecord: record and play back IR signals as a minimal
* An IR detector/demodulator must be connected to the input RECV_PIN.
* An IR LED must be connected to the output PWM pin 3.
* A button must be connected to the input BUTTON_PIN; this is the
* send button.
* A visible LED can be connected to STATUS_PIN to provide status.
*
* The logic is:
* If the button is pressed, send the IR code.
* If an IR code is received, record it.
*
* Version 0.11 September, 2009
* Copyright 2009 Ken Shirriff
* http://arcfn.com
*
*
* Version 0.2 October, 2015
* Modified to remove button function
* This module acts a IR Repeater to just
* "Read the IR Code " and "Send the IR Code" immediately
* By En-Lin Chen / Stonez56
*
*/
#include <IRremote.h>
int RECV_PIN = 2;
int STATUS_PIN = 13;
IRrecv irrecv(RECV_PIN);
IRsend irsend;
decode_results results;
void setup()
{
Serial.begin(9600);
irrecv.enableIRIn(); // Start the receiver
pinMode(STATUS_PIN, OUTPUT);
}
// Storage for the recorded code
int codeType = -1; // The type of code
unsigned long codeValue; // The code value if not raw
unsigned int rawCodes[RAWBUF]; // The durations if raw
int codeLen; // The length of the code
int toggle = 0; // The RC5/6 toggle state
// Stores the code for later playback
// Most of this code is just logging
void storeCode(decode_results *results) {
codeType = results->decode_type;
int count = results->rawlen;
if (codeType == UNKNOWN) {
Serial.println("Received unknown code, saving as raw");
codeLen = results->rawlen - 1;
// To store raw codes:
// Drop first value (gap)
// Convert from ticks to microseconds
// Tweak marks shorter, and spaces longer to cancel out IR receiver distortion
for (int i = 1; i <= codeLen; i++) {
if (i % 2) {
// Mark
rawCodes[i - 1] = results->rawbuf[i]*USECPERTICK - MARK_EXCESS;
Serial.print(" m");
}
else {
// Space
rawCodes[i - 1] = results->rawbuf[i]*USECPERTICK + MARK_EXCESS;
Serial.print(" s");
}
Serial.print(rawCodes[i - 1], DEC);
}
Serial.println("");
}
else {
if (codeType == NEC) {
Serial.print("Received NEC: ");
}
else if (codeType == SONY) {
Serial.print("Received SONY: ");
}
else if (codeType == RC5) {
Serial.print("Received RC5: ");
}
else if (codeType == RC6) {
Serial.print("Received RC6: ");
}
else {
Serial.print("Unexpected codeType ");
Serial.print(codeType, DEC);
Serial.println("");
}
Serial.println(results->value, HEX);
codeValue = results->value;
codeLen = results->bits;
}
}
void sendCode(int repeat) {
if(codeValue == 0xFFFFFFFF) return; //ignore FFFFFFF IR code
if (codeType == NEC) {
irsend.sendNEC(codeValue, codeLen);
Serial.print("Sent NEC ");
Serial.println(codeValue, HEX);
}
else if (codeType == SONY) {
irsend.sendSony(codeValue, codeLen);
Serial.print("Sent Sony ");
Serial.println(codeValue, HEX);
}
else if (codeType == RC5 || codeType == RC6) {
if (!repeat) {
// Flip the toggle bit for a new button press
toggle = 1 - toggle;
}
// Put the toggle bit into the code to send
codeValue = codeValue & ~(1 << (codeLen - 1));
codeValue = codeValue | (toggle << (codeLen - 1));
if (codeType == RC5) {
Serial.print("Sent RC5 ");
Serial.println(codeValue, HEX);
irsend.sendRC5(codeValue, codeLen);
}
else {
irsend.sendRC6(codeValue, codeLen);
Serial.print("Sent RC6 ");
Serial.println(codeValue, HEX);
}
}
else if (codeType == UNKNOWN /* i.e. raw */) {
// Assume 38 KHz
irsend.sendRaw(rawCodes, codeLen, 38);
Serial.println("Sent raw");
}
}
void loop() {
if (irrecv.decode(&results)) {
/* Receive IR code */
Serial.println("Pressed!");
digitalWrite(STATUS_PIN, HIGH);
storeCode(&results);
irrecv.resume(); // resume receiver
digitalWrite(STATUS_PIN, LOW);
delay(50);
/* Send IR code */
Serial.println("Sending!");
digitalWrite(STATUS_PIN, HIGH);
sendCode(true);
digitalWrite(STATUS_PIN, LOW);
delay(50); // Wait a bit between retransmissions
irrecv.enableIRIn(); // Re-start the receiver
Serial.println("--------------------------------");
}
}
After programming code is copied into Arduino IDE, upload it to your Arduino Pro Mini.
Power it up and then use any remote control to point to IR receiver and observe the Arduino IDE Serial output screen. Turn on Serial Monitor: Arduino -> Tools->Serial Monitor
Received NFC: FFA252D (Remote type is NEC, and the code is 0xFFA25D)
Sent NEC: FFA25D
After fully tested, it's time to solder everything together.
First, solder IR emitter LED to the extended long wires. Although not showing at the photo below, an 100 Omh resistor is needed on the data pin 2.
I soldered the IR receiver LED on small proton board to allow me to fix it into the IR BOX easier.
To provide constant power, I decided to use a smart phone power adaptor through a USB connector.
There are 4 tiny wires in the USB cable and you only need black and red wire to supply power to Arduino Pro Mini. Red connects to VCC and Black connects to Ground.
I've chosen to use a name card case as the enclosure. I drilled a tiny hole in the front of the name card case (see below), to expose IR receiver LED towards the edge.
Too often, accidentally pulling the wires will break the soldering part, so I tight a knot on the extended long wires to secure wires in place.
Now, every parts are soldered together as you see below.
Emitter board and Arduino Pro Mini placement is looked like this below.
Then, I glue the entire board with a glue gun to secure PCBs inside the name card box.
Plug the USB adaptor to power it up. Great! It's working.
Below is how this project looked like. As you can see, the extended wires are almost five to seven meters long.
Setup:
Follow IR Repeater Setup Illustration in Tutorial Part 1 - Place IR BOX next to your TV and plug the USB adapter
- Pull the IR emitter with the wire through the wall into the living room
- Make sure the IR emitter is aiming towards the IR receiver on the Set Top Box
- I glue the IR emitter LED next to my couch and it working fine
- Done
After the setup, I've been use this IR repeater for 2~3 weeks and it's working perfectly without any issue. If you would like to make your own, you can follow this tutorial!
See the video below, if you haven't!
END.
==================================================
